Schiller Tranquility VS Capnography, ETC02 Monitor
SKU: 2.987651Schiller Tranquility VS Capnography, ETC02 Monitor
Couldn't load pickup availability
Free Ground Shipping (exclude PUR,HI,AK).

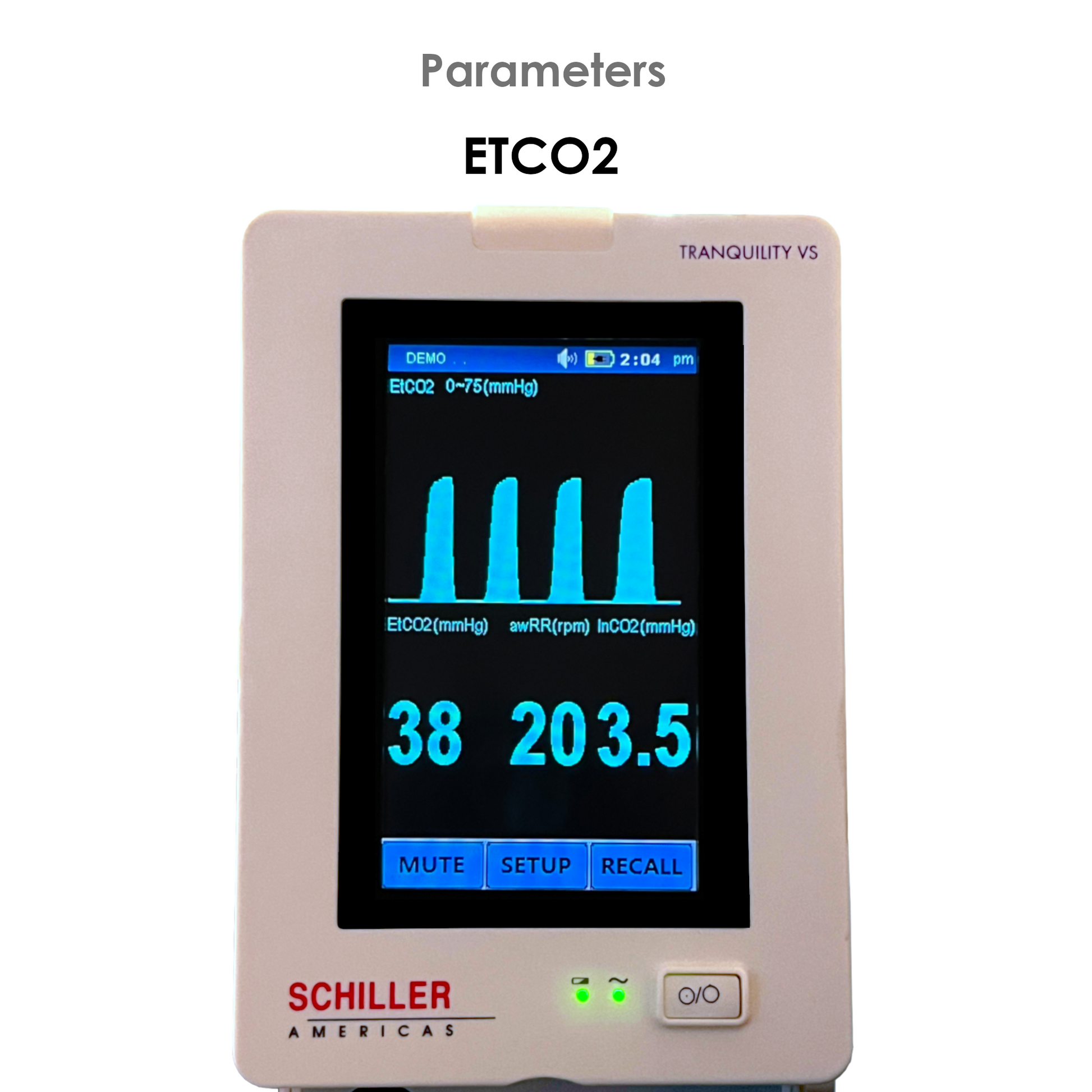

he Schiller Tranquility VS is a new and intuitive approach capnography (EtCO2) Monitor. Weighing in at less than 3 LBS the Schiller Tranquility VS is well suited for any patient care area. The Schiller Tranquility VS simplifies clinician use by incorporating a touch screen with a simple user interface making it intuitive for any user.
The capnography system is a cutting edge low fuel End-tidal CO2 measuring system. The capnography uses a 50/ml per minute sidestream method to deliver the most accurate EtCO2 readings. Non-proprietary sample lines allows the Schiller Tranquility VS to be the industry's lowest cost per patient End-Tidal CO2 monitors.
The capnography can be used on both intubated and non-intubated patients. A long life lithium Ion battery is standard and mobile mounting solutions' are available for the Schiller Tranquility VS.
CO2 measurement range 0 - 150 mmHg,
Respiration Range 2 - 150 bpm,
Included: CO2 sample line, power cord and user manual.
Standards: Meets performance standards of EN ISO 9919:2005, Meet the requirement of EN60601 series, CE marking according to MDD93/42/EEC, Sterilization or Disinfection methods: 70% isopropyl alcohol solution or a nonstinging disinfectant.
Compact and Portable Design
Lightweight: Weighs less than 3 lbs, making it ideal for various patient care areas, including bedside and mobile spot-check environments.
Parameter
Capnography
Mode of Sampling: Sidestream
Respiration Rate: 2 ~ 150 bpm
Respiration Rate accuracy: ±1 breath
CO2 Resolution:
0.1mmHg (0-69mmHg)
0.25mmHg (70-150mmHg)
Standard disposable cannulas and filters
User-Friendly Interface
5" Touchscreen Display: Simplifies clinician use with an intuitive interface, ensuring ease of operation.
Measurements
Base Unit 8 x 4.5 x 4 (HxWxD inches)
Versatile Mounting Options
Multiple Configurations: Available with rolling stands, wall mounts, or bedside mounts to suit different clinical settings.
Long Battery Life
Extended Monitoring: Equipped with a long-life lithium-ion battery, supporting continuous monitoring and reducing downtime.
Ideal for Various Clinical Settings
Multiple Applications: Suitable for minor surgical procedures, primary care checks, dental sedation, sleep labs, pain management, and healthcare provider.
1 year Waranty.
Support and Warranty is provided directly through a Certified Schiller Technician. Please contact the seller directly for warranty information for this product. Schiller TECHNICAL SUPPORT Toll Free (USA Only): (888) 845-8455 - Press Option 3
