Tranquility VS (CO2 + SpO2 + NIBP)

Standard Accessories Included:

• BP Cuff (Adult)
• BP Cuff Hose
• Analog Adult Oximetry Sensor
• Analog SpO2 Extension Cable
• CO2 Sample Line
• Power Cord (110 or 220)
• Operators Manual

Compact and Portable Design Lightweight:
Weighs less than 3 lbs, making it ideal for various patient care areas, including bedside and mobile spot-check environments.

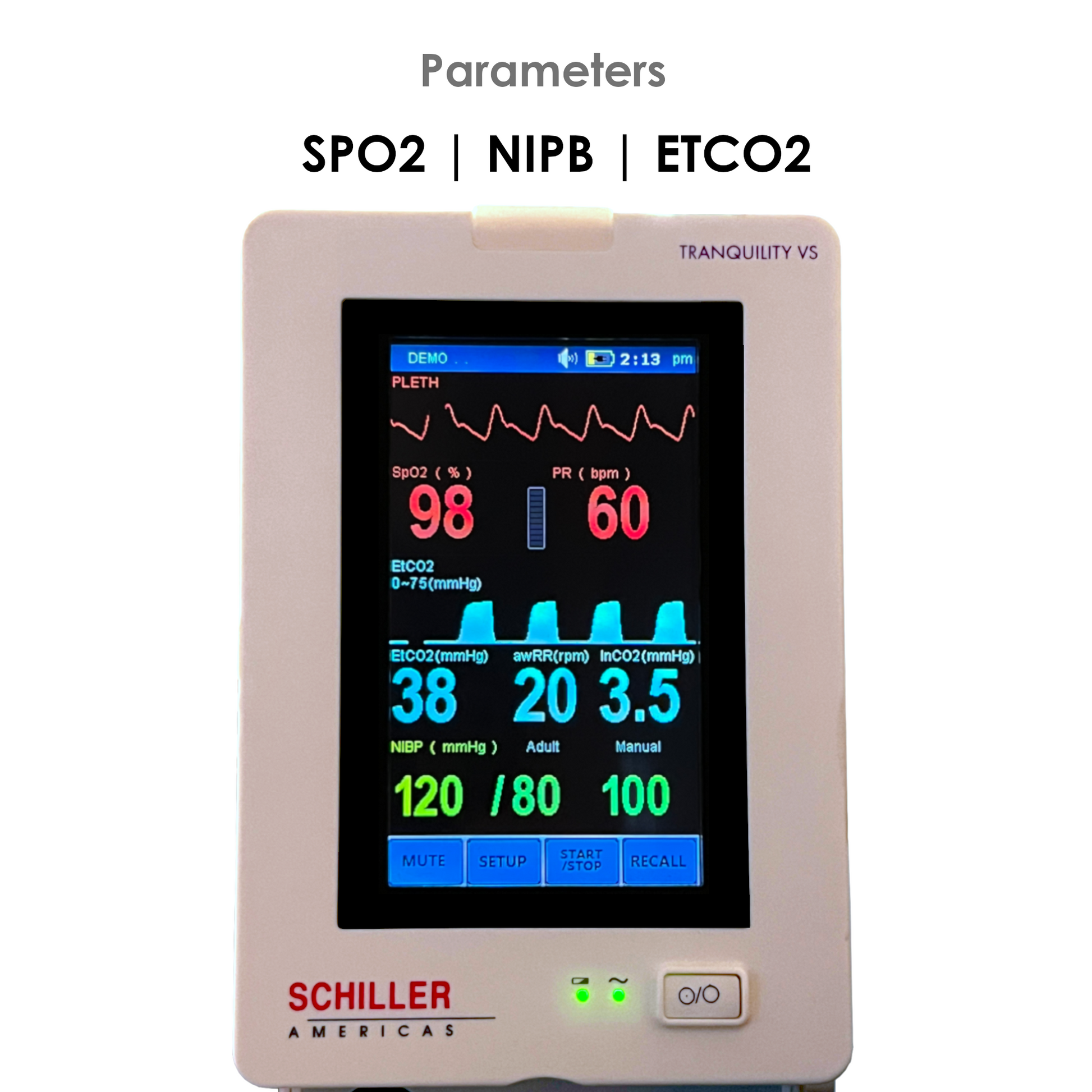

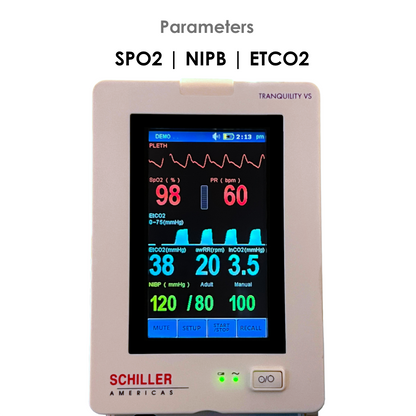

Parameter
Pulse Oximeter SpO2
Anti-motion SpO2
SpO2 Accuracy +-2% (70~100%, non-motion) +-3% (70~100%, motion)
Pulse Rate Range: 30~250 bpm

Non-Invasive Blood Pressure (NIBP)
Mode: Manual, Auto, STAT
Measuring interval in AUTO mode: 2 minutes to 4 hours
Adult Mode: SYS: 40~250 (mmHg) DIA: 15~200 (mmHg)

Capnography
Mode of Sampling: Sidestream
Respiration Rate: 2 ~ 150 bpm
Respiration Rate accuracy: ±1 breath
CO2 Resolution: 0.1mmHg (0-69mmHg) 0.25mmHg (70-150mmHg)
Standard disposable cannulas and filters

User-Friendly Interface

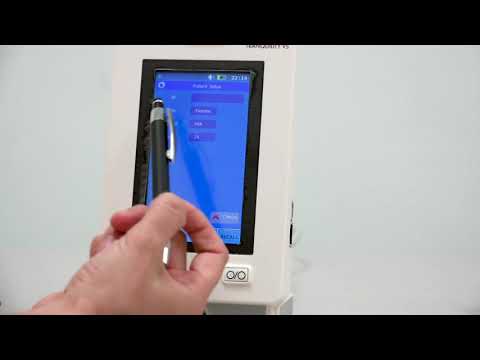

5" Touchscreen Display: Simplifies clinician use with an intuitive interface, ensuring ease of operation.

Measurements

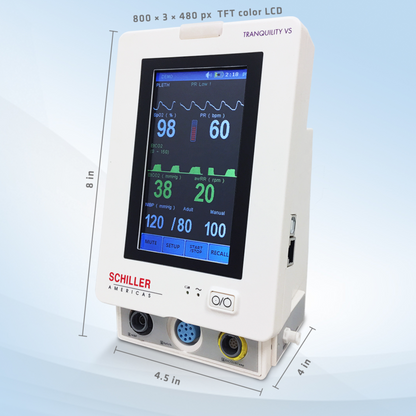

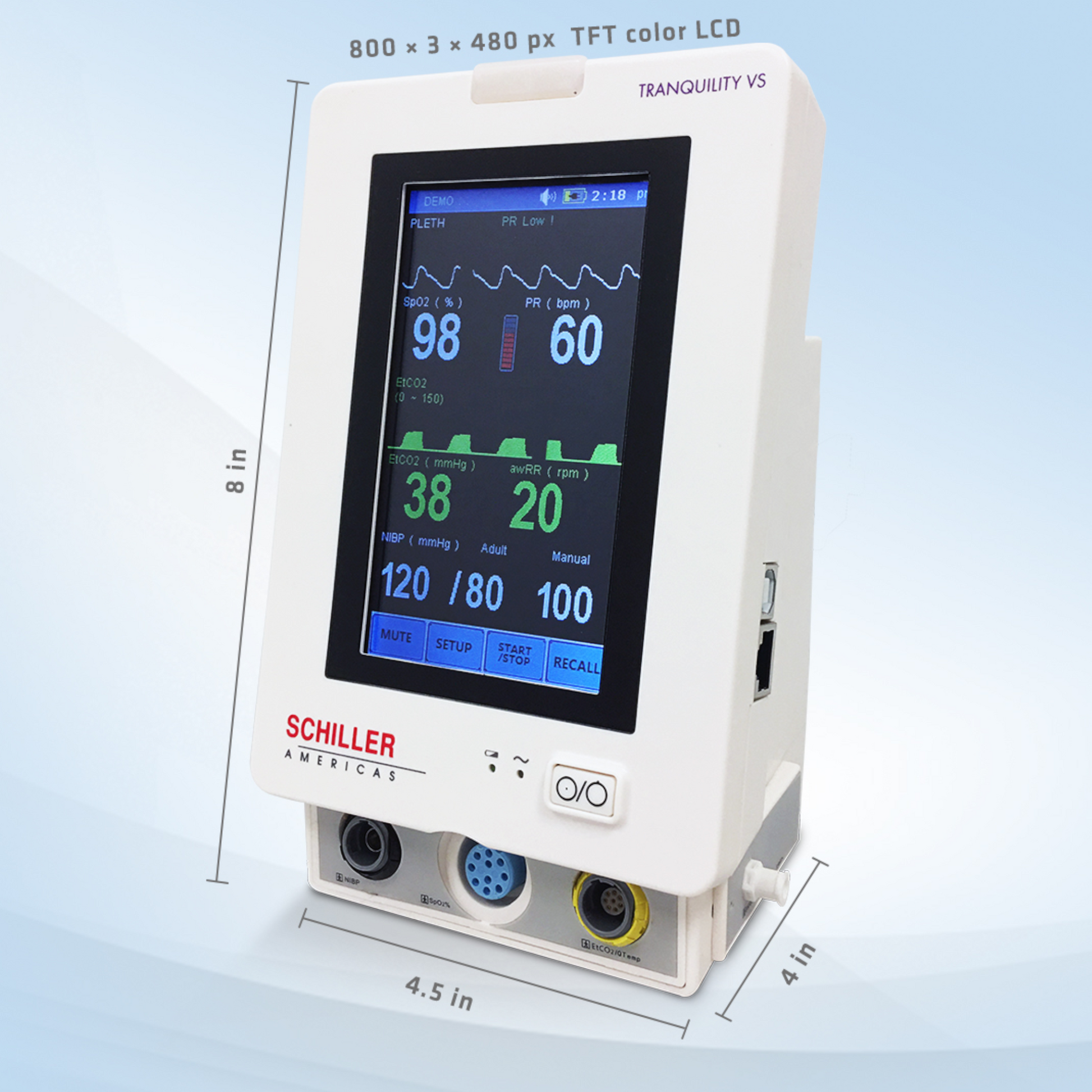

Base Unit 8 x 4.5 x 4 (HxWxD inches)

Versatile Mounting Options
Multiple Configurations: Available with rolling stands, wall mounts, or bedside mounts to suit different clinical settings.

Long Battery Life
Extended Monitoring: Equipped with a long-life lithium-ion battery, supporting continuous monitoring and reducing downtime.

Ideal for Various Clinical Settings
 Multiple Applications: Suitable for minor surgical procedures, primary care checks, dental sedation, sleep labs, pain management, and healthcare provider.

2 year Warranty for Monitors.
60 days warranty for Accessories & Sensors.

Support and Warranty is provided directly through a Certified Schiller Technician. Please contact the seller directly for warranty information for this product. Schiller TECHNICAL SUPPORT Toll Free (USA Only): (888) 845-8455 - Press Option 3
